X7210W Industrial Panel PC - Fanless Computer For Industrial Environments with Resistive Touch Screen
X7210W Industrial Panel PC - Fanless Computer For Industrial Environments with Resistive Touch Screen X7210W Industrial Panel PC - Fanless Computer For Harsh Environments with Resistive Touch Screen X7210W Industrial Panel Monitor - Projective Capacitive (PCAP) Touch Screen X7210W Industrial Panel PC - Fanless Touch Screen Computer For Industrial Environments X7210W Industrial Panel PC - Fanless Touch Screen Computer For Industrial Environments

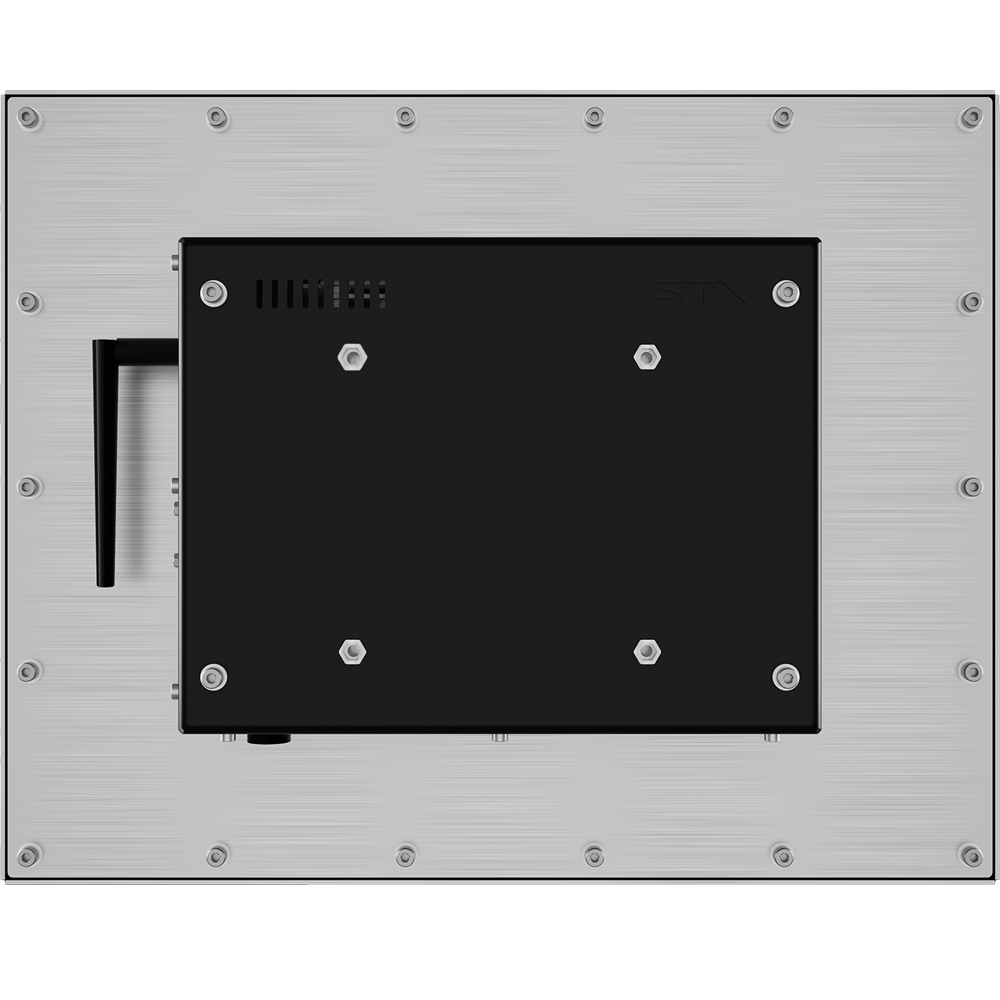

X7210W 10.1 Inch Industrial Touch Panel PC

  • 10.1 inch Touch Screen
  • Resolution 1280x800 16:9
  • Intel® Generation 11 CPU | ARM RK3588S
  • TPM 2.0
  • Windows | Linux | Android | Monitor
  • 304 Stainless Steel
  • Fanless Design
  • 10VDC~30VDC Power Input
  • 5th Generation Product (G5)

industrial aluminium panel pc

 proven industrial product

vesa or panel mount

Engineered Tough for Extreme Environments

  • 10VDC~30VDC Power Input
  • Responsive Touch Screen
  • Rugged Stainless Steel Enclosure

Proven in Industrial Environments

  • Stainless Steel Enclosure
  • Fanless Construction

Easy Mounting Options

  • VESA Mount
  • Panel Mount

ports

 industrial use

application

Ports

  • 1 x Power
  • 2 x Ethernet 1000Mbps
  • 4 x USB 3.0
  • 1 x HDMI
  • 1 x MiniDP

Used Across Industries

  • Food Processing
  • Meat Production
  • Fish Production
  • Pharmaceutical
  • Chemical
  • Automation & Control
  • Agriculture
  • Horticulture
  • Dairy
  • Mining

Applications

  • Information Display
  • Safety
  • CCTV
  • Data
  • Loading Applications
  • Collection

The X7200 Industrial Touch Panel PC is manufactured to order using high-quality industrial components and comes backed by a local Service Team.

Contact STX Technology for more information or to request a quote.

  • Engineered for Industrial Environments
  • Resistive or Projective Capacitive (PCAP) Touch Screen
  • Intel® Generation 11 CPU
  • Celeron® | Core™ i5 | Core™ i7 | ARM RK3588S CPU Options
  • 304 or 316 Brushed Stainless Steel finish
  • Fanless Design - Resistant to dust and particle intake
  • VESA or Panel Mount
  • 10~30VDC Power Input
  • Industrial Wide Temp SSD Hard Drive
  • Network Boot (PXE Boot)
  • 5th Generation Product (G5)
  • Comprehensive Support
 STX Technology Panel PC Touch Screen


10.1 inch Resistive Touch

STX Technology X7200 Stainless Steel Resistive Touch Panel PC
Touch Panel PC
X7210W-C4-RT
Intel® Celeron® 6305U
8GB DDR4 RAM
120GB SSD
Windows | Linux

X7210W-C5-RT
Intel® Core™ i5-1135G7
8GB DDR4 RAM
120GB SSD
Windows | Linux

X7210W-C7-RT
Intel® Core™ i7-1165G7
8GB DDR4 RAM
120GB SSD
Windows | Linux

X7210W-A3-RT
ARM RK3588S
8GB DDR4 RAM
128GB EMMC
Android 13

Touch Panel Monitor
X7210W-M-RT
HDMI | VGA | DP
USB Touch

X7210W-M-RT-KVM
HDMI | DP & USB Touch
Up to 100M over CAT6
















10.1 inch Projective Capacitive Touch (PCAP)

STX Technology X7200 Stainless Steel PCAP Touch Panel PC
Touch Panel PC
X7210W-C4-PT
Intel® Celeron® 6305U
8GB DDR4 RAM
120GB SSD
Windows | Linux

X7210W-C5-PT
Intel® Core™ i5-1135G7
8GB DDR4 RAM
120GB SSD
Windows | Linux

X7210W-C7-PT
Intel® Core™ i7-1165G7
8GB DDR4 RAM
120GB SSD
Windows | Linux

X7210W-A3-RT
ARM RK3588S
8GB DDR4 RAM
128GB EMMC
Android 13

Touch Panel Monitor
X7210W-M-PT
HDMI | VGA | DP
USB Touch

X7210W-M-PT-KVM
HDMI | DP & USB Touch
Up to 100M over CAT6












Standard Features

  • 304 Brushed Stainless Steel
  • VESA Mount or Panel Mount
  • 10~30VDC power input
  • Network Boot (PXE Boot)






Optional Features
Display Brightness:
  • High Brightness 600nits
  • High Brightness 1000nits
Power:
  • 10~30VDC power input
 System:
  • 16GB | 24GB | 40GB DDR4 RAM
  • 256GB | 512GB | 1TB Industrial SSD
  • Up to 4 Ethernet 1000Mbp
  • Up to 8 RS232 | RS422 | RS485
  • CAN bus
  • High Speed Serial (to 3M Baud)
  • WiFi Dual Band
  • Bluetooth
  • 3G / 4G or 4G / 5G
 Material:
  • 304 Stainless Steel
  • 316 Stainless Steel
Mounting:
  • VESA Mount
  • Panel Mount
 Finish:
  • Stainless Steel Brushed
  • Stainless Steel Highly Polished
  • Stainless Steel Electro Polished
  • Matte Black
Touch
Touch Type Resistive Touch
Projective Capacitive Touch



Display
LCD Size 10.1 inch, 16:9
Colours 16.2 million
Resolution 1280 x 800
Other Supported Resolutions 1024 x 768
Contrast Ratio 1300:1
Viewing Angle Horizontal: ±80° , Vertical: 80°
Response Time 14.5 msec
Brightness (Typical) 300 nits (optional 600 nits or 1000 nits)



System
CPU Intel® Celeron® 6305U | Intel® Core™ i5-1135G7 | Intel® Core™ i7-1165G7 | ARM RK3588S
System Memory 8 GB (optional 16GB | 24GB | 40GB)
Hard Drive 128GB Industrial SSD (optional 256GB | 512GB)
Operating systems Windows 10 | Windows 11 | Linux | Android 13
Boot Options Network Boot (PXE Boot)



Ports
USB 4 x USB 3.0
Connectivity 2 x Ethernet 1000Mbps (optional up to 3 Ethernet 1000Mbps)
Connectivity options WiFi Dual Band (Optional)
Bluetooth (Optional)
3G / 4G LTE | 4G / 5G (Optional)
Video Out 1 x HDMI
1 x mini DP
Audio Out 1 x 3.5 Jack
Serial options up to 8 x RS232 (Optional)
RS485 or RS422 (Optional)
CAN Bus (Optional)
High Speed Serial RS232/RS422/RS485 (to 3M Baud) (Optional)





Monitor Option
Video Input HDMI | DVI | VGA | Display Port options
Touch USB Touch (optional RS232 Serial)



KVM Monitor Option
Video Input HDMI | VGA | Display Port options
Touch USB Touch (optional RS232 Serial)
Single CAT6 Cable Video & Touch up to 100M



Mechanical & Environmental
Material 304 Stainless Steel
optional 316 Stainless Steel
Finish Brushed
optional Highly Polished
Mounting VESA Mount
optional Panel Mount
Connectors 3 Pin M16 Power Connector
Power Input 10VDC~30VDC
(Optional Power Brick 110~240VAC)



Accessories
Keyboard Optional IP68 Keyboard and Keyboard Tray Kit
Mounting Options Various mounting kits available including VESA and Panel Mount



Touch
Touch Type Resistive Touch
Projective Capacitive Touch



Display
LCD Size 10.1 inch, 16:9
Colours 16.2 million
Resolution 1280 x 800
Other Supported Resolutions 1024 x 768
Contrast Ratio 1300:1
Viewing Angle Horizontal: ±80° , Vertical: 80°
Response Time 14.5 msec
Brightness (Typical) 300 nits (optional 600 nits or 1000 nits)



Monitor Option
Video Input HDMI / DVI / VGA / Display Port options
Touch USB Touch (optional RS232 Serial)



KVM Monitor Option
Video Input HDMI / VGA / Display Port options
Touch USB Touch (optional RS232 Serial)
Single CAT6 Cable Video & Touch up to 100M



Mechanical & Environmental
Material 304 Stainless Steel
optional 316 Stainless Steel
Finish Brushed
optional Highly Polished
Mounting VESA Mount
optional Panel Mount
Connectors 3 Pin M16 Power Connector
Power Input 10VDC~30VDC
(Optional Power Brick 110~240VAC)



Accessories
Keyboard Optional IP68 Keyboard and Keyboard Tray Kit
Mounting Options Various mounting kits available including VESA and Panel Mount



Accessories include wall mounting brackets, complete range of IP67 / IP68 industrial connectors, IP68 keyboards and mounting accessories.
